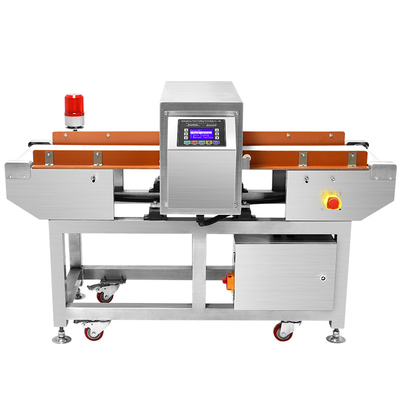

Sensitivity Adjustment Factory Price Food Metal Detector With Conveyor Belt For Food Bag Box

1 set
MOQ
Sensitivity Adjustment Factory Price Food Metal Detector With Conveyor Belt For Food Bag Box
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Warranty: 1 year
Type: Food metal detector
Customized support: OEM, ODM, OBM
Model Number: YW-810
Product name: Food Metal Detector
Application: Food Metal Detector .needle Metal Detector
Power: 110~240V
Alarm mode: Motor Automatically Stop
Certificate: CE
Feature: Sensitivity Adjustment
Sensitivity(Fe): 0.5MM
Material: Stainless Steel Material
Dimensions (mm): 1520*860*930mm(L*W*H)
Weight: 230KGS
Сертификация: CE
Основная информация
Сертификация: CE, CE
Model Number: YW-810
Оплата и доставка Условия
Packaging Details: Food metal detector in ply wooden case packing
Характер продукции
Products Description

Application

Mainly used in food, aquatic products, toys, clothing, footwear, chemicals, leather, knitting and other industries, for the detection of inclusions or lost in the raw materials or products broken needle, wire and other metals, preventing metal pollution of the products and guaranteeing product quality. Be able to detect various metals like iron, stainless teel, copper and aluminum, etc.
Specification
Detection width :
30-80 cm, Customized
Detection height:
8-50cm Customized
Detection sensitivity:
See below table
Alarm mode:
The buzzer alarm, the motor automatically stop
Transfer speed:
25 meter / min or you can select adjust speed
Power:
100-265VAC, 50-60Hz (According to customer request)
Size:
(150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H)
Reject system
Option(Air blow/pusher/flip)
The sensitivity will be some different according to the different kinds of products, packing materials and weight. Below parameters for your reference:
Detected Height(mm)
80
100
150
200
250
300
350
Belt Width(mm)
250
250
400
400
400
400
400
Belt length
1400mm(Or customized)






Detector sensitivity(mm)
Fe 0.8
Fe 1.0
Fe 1.2
Fe 1.5
Fe 2.0
Fe 2.5
Fe 3.0
SUS 1.2
SUS 2.0
SUS 2.5
SUS 2.5
SUS 3.0
SUS 3.5
SUS 4.0
N-Fe 1.2
N-Fe 1.5
N-Fe 2.0
N-Fe 2.0
N-Fe 2.5
N-Fe 3.0
N-Fe 3.5
Speed of belt
25M/min (Fixed speed) ;
If you need adjust 5-40 M/min , please inform us before order
Load ability
20kgs(Or customized 20-50kgs)
Warning method
Sound and light alarm ; The belt can be stopped, continue run or belt return
Reject Ways
when has auto-reject system ,belt continue and rejecting the goods
Application
Non-package ,plastic package ,paper bag or box (non-metallic) product
Work Environment
Temperature -10℃-40℃ ,relative humility 30-90%

Products description.

1. Made of 304 stainless steel, durable and nice appearance, conveyor and pallet assembly used in the food grade materials.
2. Digital machine, memory function for registering various products(Max: 12items).
3. adopt the combine technology of double signal and detection circuit, LCD display, with Chinese and English menu, easy
operation.
4. Adopt Germany professional detection technology with balanced principle, more reliable, better performance.Dual-channel and frequency detecting ferrous, non-ferrous and stainless steel.
5. DSP and MCU combination of the detection signal for data sampling and data processing, improve the detection results.
6. DSP and MCU combination of the detection signal for data sampling and data processing, improve the detection results.
7. Able to detect iron, stainless steel, copper, aluminum and other non-ferrous metals and other materials.
8. With the learning function of automatic identification, overcome the effect of products materials efficiently, strong
anti-interference and shock proof.
9. Support 24 hours non-stop working.
10. fairly good waterproof ability, apply to high temperature, low temperature, damp, dry, dust, dew and other poor work
environment.
11 Can learn itself, not need to set the parameter ourselves. And also can store 100 different kinds of products parameters.
12. The sensitivity is the result of testing without any products, and the sensitivity will be some difference according to the different kinds of products, packing materials and weight.
Details Images
Option: all kinds of rejector
Customer feedback
About us

FAQ

1.How long of the warranty period? Whole machine 1year. In warranty period, We will send the part free to replace the one
that is broken.

2.How can I trust you for the first time business ? Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of transaction.

3.What is your terms of payment? T/T, L/C, Western Union, etcA: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.or 100% L/C at sight .

4.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order? Sea shipping, air Shipping, and international express. And after confirming your order ,we would keep you updated of production details of emails and photos.

5.Are you provide product metal parts and provide us technical guidance? Wearing parts,for example, motor belt, Disassembly tool(free) are what we could provide.And we can give you technical guidance.
